Modern Suspension Machinery & Quality Testing Systems

Vehicle suspension reliability directly governs highway transit safety and commercial logistics efficiency. Suspension springs must endure continuous stress cycling, environmental degradation, and variable loading conditions across their operating life.

Building a dependable production infrastructure requires high-precision machinery alongside stringent quality control laboratories. For manufacturers supplying original equipment or high-grade aftermarket components, integrating automated processing systems with specialized inspection instruments guarantees consistent product performance.

This article reviews the essential machinery powering current spring fabrication and outlines the critical laboratory instruments required to verify mechanical integrity.

Processing Steps

Transforming raw steel flat bars into durable spring packs involves sequential mechanical and thermal processes designed to optimize mechanical characteristics.

Materials Preparation

• Bar Cutters: Shear incoming raw steel stock into precise segment lengths cleanly.

• Hole Punchers: Pierce central bolt holes and side clip slots prior to thermal operations.

Thermal Forming

• Tapering Mills: Form parabolic cross-sections to minimize component mass while distributing operational stresses evenly.

• Eye Forming Units: Bend plate ends into single or reinforced double eyes to accept rubber or bronze bushings.

• Tip Profile Cutters: Shape terminal ends to assist smooth inter-leaf movement under flexure.

Heat Treatment

• Induction Heaters: Deliver localized or full-length thermal energy efficiently before mechanical shaping.

• Continuous Quenching Furnaces: Maintain uniform steel temperatures prior to curvature forming and oil immersion.

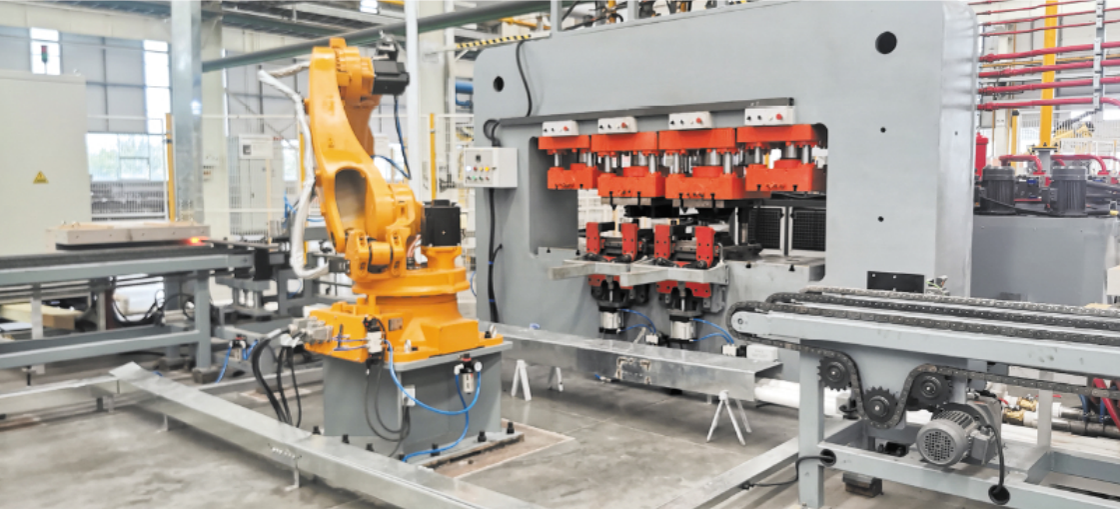

• Arc Forming Presses: Shape specified camber profiles and immediately immerse parts into controlled quenchant.

• Tempering Systems: Relieve internal quenching stresses to achieve targeted mechanical toughness.

Finishing

• Surface Peening Machines: Blast high-velocity steel shot against tension faces to induce beneficial compressive stress layers.

• Compression Benches: Load finished leaves beyond maximum yield limits to eliminate operational settling.

• Protective Coating Lines: Apply protective coatings to resist rust under road exposure.

• Packing Workstations: Insert bushings and clamp individual leaves into complete assemblies using center fasteners.

Inspection Methods

Manufacturing high-spec springs demands comprehensive lab testing to confirm hardness, grain structure, load performance, environmental resistance, and fatigue durability.

Hardness Evaluation

Surface and core hardness measurements confirm proper thermal processing and indicate tensile capacity.

• Large-Area Hardness Instruments: Apply heavy indentation forces across raw or treated steel sections to evaluate average hardness uniformity.

• Superficial Hardness Units: Perform rapid localized checks on finished surfaces or sectioned samples.

• Practical Value: Prevents premature structural failure caused by soft material or excessive brittleness.

Microstructural Study

Metallurgical evaluation confirms steel cleanliness and identifies potential processing defects.

• Optical Microscope Platforms: Provide high-magnification cross-sectional examination with image processing tools.

• Core Parameters: Assesses surface decarburization depth, grain boundaries, microstructural phases, and non-metallic inclusions.

Force Resistance

Static and dynamic load testing validates stiffness ratings and elastic deformation characteristics.

• Hydraulic Load Testers: Exert downward force on full spring assemblies to capture dynamic deflection curves.

• Core Parameters: Verifies spring rates, free arch dimensions, loaded heights, and residual deformation after release.

Salt Corrosion

Underbody suspension components encounter road salts, standing water, and mud during seasonal service.

• Fog Exposure Chambers: Subject coated test coupons or full leaves to saline mist according to standardized testing protocols.

• Practical Value: Verifies coating adhesion and ensures long-term resistance against rust propagation.

Dynamic Durability

Fatigue evaluation provides definitive verification of operational lifespan under repeated deflection cycles.

• Cyclic Test Rigs: Subject complete assemblies to continuous cyclic loads mimicking severe road conditions.

• Core Parameters: Simulates axle frequency, records stress history, and automatically detects crack initiation or structural separation.

Production Value

Adopting advanced manufacturing lines and laboratory testing equipment provides measurable operational advantages:

1. International Certification: Meets stringent quality benchmarks demanded by international commercial vehicle builders.

2. Material Conservation: Minimizes scrap volume through accurate heat control and tight mechanical tolerances.

3. Field Reliability: Reduces field claims by discovering potential metallurgical or mechanical flaws early.

4. Energy Management: Decreases utility expenses by utilizing modern induction technology and automated controls.

Our Capabilities

Establishing a world-class suspension production facility requires dependable machinery and technical expertise. We design and deliver complete manufacturing lines alongside specialized laboratory testing instruments, including hardness checkers, metallographic microscopes, load benches, salt corrosion chambers, and dynamic fatigue test rigs.

Contact our engineering staff to review project specifications, layout plans, and customized equipment quotations.
