Leaf Spring Equipment

Introduction

The global automotive and commercial vehicle industries demand high-performance suspension systems. Leaf springs remain critical for payload capacity, vehicle stability, and driving safety.

To meet stringent international standards, establishing an automated leaf spring manufacturing line is essential. Furthermore, comprehensive leaf spring testing equipment is vital to guarantee dynamic endurance, structural integrity, corrosion resistance, and material quality.

This guide explores the end-to-end manufacturing process, core production machinery, and essential quality control testing equipment.

Part 1: Manufacturing Equipment

A modern leaf spring facility processes steel flat bars from raw stock to finished, painted suspension assemblies.

1. Cutting Machinery

• Hydraulic Bar Shearing Machines: Cut flat steel bars to exact lengths with clean edges.

• Punching and Drilling Machines: Create center bolt holes, clip holes, and alignment slots.

2. Tapering and Forming

• Parabolic Taper Rolling Mills: Produce parabolic profiles for weight reduction and flexible suspension response.

• Eye Rolling Machines: Form single or double wrapped eyes on main plates for bushings.

• End Shearing Machines: Profile spring tips for proper load distribution.

3. Heat Treatment Lines

• Induction Heating Furnaces: Provide energy-efficient heating for bar ends and full lengths.

• Walk-Beam Quenching Furnaces: Ensure uniform temperature before forming.

• Cambering & Quenching Presses: Form the required arc and immerse leaves in quenching oil.

• Tempering Furnaces: Relieve residual stress and achieve specified hardness levels.

4. Surface Treatment & Assembly

• Shot Peening Machines: Create compressive residual stress to increase fatigue life.

• Presetting Presses: Compress springs past yield points to eliminate initial setting loss.

• Painting Lines: Apply protective coatings for rust prevention.

• Assembly Benches: Install bushings and assemble leaf packs with center bolts.

Part 2: Quality Testing Equipment

Quality assurance requires specialized laboratory and inline testing instruments to satisfy international management systems.

1. Hardness Testers

Hardness indicates proper heat treatment and material tensile strength.

• Digital Brinell Hardness Testers: Measure average hardness across raw or heat-treated steel bars.

• Rockwell Hardness Testers: Perform rapid checks on smaller samples or finished surfaces.

• Benefits: Ensures required hardness without excessive brittleness or soft spots.

2. Metallographic Analysis

Microstructural checks prevent defects from forging, rolling, or heat treatment.

• Metallographic Microscopes: Provide high-magnification optical inspection and image analysis.

• Key Parameters: Evaluates decarburization depth, grain size, microstructure composition, and non-metallic inclusions.

3. Performance & Load Testers

Performance testing validates mechanical elasticity and load capacity.

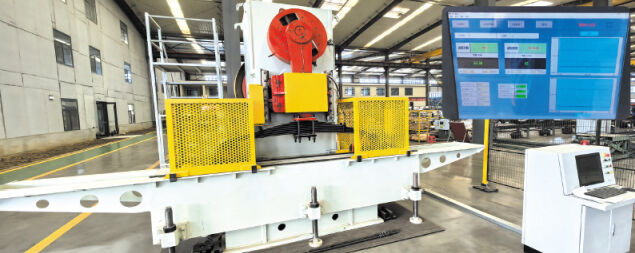

• Servo-Hydraulic Spring Testers: Apply vertical loads to evaluate stiffness.

• Parameters Measured: Generates load-deflection curves, measures free camber, loaded height, and checks permanent set deformation.

4. Salt Spray Chambers

Leaf springs operate under underbody environmental exposure to moisture, road salt, and dirt.

• Corrosion Test Cabinets: Use salt fog spray to test painted and coated surfaces under ASTM B117 or ISO 9227 standards.

• Benefits: Verifies paint adhesion and rust resistance over extended hours.

5. Fatigue Testing Machines

Fatigue testing offers definitive proof for spring life prediction and durability.

• Dynamic Fatigue Test Rigs: Flex leaf springs through hundreds of thousands of dynamic cycles.

• Capabilities: Features variable frequency control, simulates road stresses, and automatically detects crack initiation or failure.

Part 3: Advantages for Your Production

Investing in automated leaf spring machinery and laboratory testing equipment provides long-term advantages:

1. OEM Compliance: Satisfies strict tolerance and quality control requirements.

2. Reduced Material Waste: Improves accuracy in tapering, heating, and forming processes.

3. Brand Reliability: Eliminates field failures through rigorous dynamic and corrosion testing.

4. Operating Efficiency: Lowers energy consumption using modern induction and hydraulic systems.

Conclusion & Solutions

Whether setting up a new production line or upgrading laboratory testing capabilities, choosing the right equipment partner is crucial. We provide comprehensive solutions covering hot forming, heat treatment, and precision testing systems including hardness testers, metallographic microscopes, load-deflection test benches, salt spray cabinets, and fatigue test rigs.

Contact our engineering team today for technical proposals, detailed specifications, and customized quotations.
