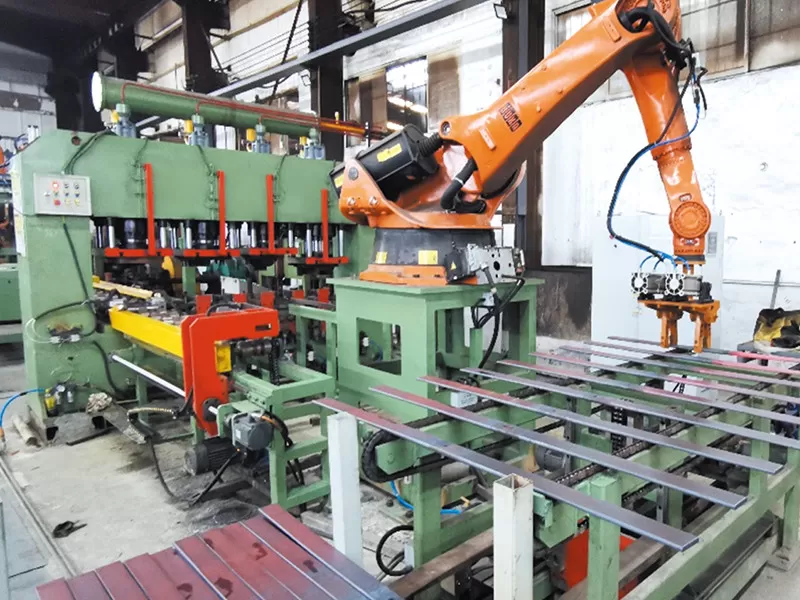

Parabolic Leaf Spring Machine: Modernizing Suspension Production

In the fast-paced heavy vehicle and transport equipment sector, producing high-grade suspension systems demands top-tier engineering, rapid production cycles, and minimal thermal distortion. Modern suspension assemblies must endure extreme payload stresses, severe axle movement, and millions of fatigue cycles.

Upgrading from obsolete mechanical presses to an automated manufacturing hub relies heavily on specialized industrial machinery. Integrating a high-tonnage parabolic leaf spring machine alongside a dedicated leaf spring taper rolling machine allows suspension fabricators to drastically elevate material yield, optimize steel grain structures, and secure a dominant position in the global automotive supply chain.

1. Benefits of Taper Rolling

The tapering stage defines the ultimate weight-to-strength ratio of modern lightweight suspension components. Unlike traditional multi-leaf constant-thickness springs, parabolic springs require variable cross-sections along their length to distribute bending stress evenly across the leaf.

Installing a modern leaf spring taper rolling machine delivers distinct engineering advantages:

• Material Optimization: The continuous roll-forming action reduces raw steel consumption by creating smooth length transitions without material waste.

• Refined Metallurgical Structure: Hot rolling aligns steel grain flow with the stress vector, significantly enhancing dynamic load endurance.

• Precision Thickness Control: Servo-driven rolls on the leaf spring taper rolling machine control parabolic profiles down to tenths of a millimeter, guaranteeing uniform flexibility across every batch.

2. Line Workflow & Setup

A heavy-duty parabolic leaf spring machine forms the heart of an automated spring shop. To maintain continuous throughput, the machinery line links raw stock shearing directly to final surface finishing.

• Precision Raw Material Shearing: Flat alloy steel bars are cut to precise blank lengths with minimal burr formation.

• Tip & Center Heating: High-speed induction coils heat selective zones of the blank to target forging temperatures while minimizing surface decarburization.

• Taper Roll Forming: The specialized leaf spring taper rolling machine converts constant-thickness blanks into precise parabolic profiles.

• Eye Forming & End Modification: Precision hydraulic dies curl the attachment eyes and form spring end contours.

• Thermo-Mechanical Cambering & Quenching: A multi-axis parabolic leaf spring machine bends the heated leaf to its specified curvature before immersing it in high-agitation quenching oil.

• Tempering & Stress Relief: Leaves undergo controlled reheating to achieve target Rockwell hardness values without brittleness.

• Shot Peening & Coating: High-velocity steel shot impacts the spring surface to introduce beneficial compressive residual stress before applying protective coatings.

3. Thermal & Energy Efficiency

Thermal operations consume the largest share of operational expenses during spring fabrication. Modern parabolic leaf spring machine setups prioritize immediate heating methods and fast mechanical movement to minimize heat loss.

• Targeted Induction Heating Units: Induction systems heat individual steel blanks in seconds rather than minutes, cutting scaling losses and lowering electrical consumption per ton.

• Programmable Servo Hydraulic Cambering: The bending unit of the parabolic leaf spring machine adjusts forming dies dynamically, eliminating lengthy downtime for die switchovers.

• Automated Thermal Transport: Rapid robot-assisted transfers move hot steel blanks between furnace, rolling mill, and quenching vats to minimize heat dissipation before oil immersion.

4. Operational Comparison

Transitioning to a modern parabolic leaf spring machine and rolling configuration elevates productivity across essential manufacturing metrics.

5. Maintenance Best Practices

Continuous dynamic loading and high working temperatures demand systematic preventative maintenance to ensure continuous uptime for the leaf spring taper rolling machine.

• Daily Tasks: Clear mill scale around rolling dies, check main hydraulic line pressure, and verify lubricant levels on main drive gears.

• Weekly Tasks: Inspect taper roller surfaces for wear patterns, inspect heat exchangers on hydraulic fluid reservoirs, and clean sensor heads.

• Monthly Tasks: Measure shaft run-out on the leaf spring taper rolling machine, sample quenching oil quality, and calibrate induction furnace temperature sensors.

• Quarterly Tasks: Complete a full structural integrity check on the parabolic leaf spring machine frame, align guide tracks, and update drive firmware.

6. Supplier Selection Factors

Selecting the right plant equipment requires evaluating machine rigidity, drive controls, and customized tooling options. Key factors include:

1. Robust Frame Construction: Heavy structural steel castings prevent machine flexing under hundreds of tons of hydraulic pressure, keeping tolerances tight across multi-shift runs.

2. Flexible Control Systems: Ensure the leaf spring taper rolling machine includes user-friendly PLC interfaces for fast profile storage and rapid product switching.

3. Turnkey Technical Support: Partner with suppliers offering comprehensive plant design, installation supervision, and prompt replacement parts delivery.

Conclusion

Upgrading your suspension fabrication facilities with a high-capacity parabolic leaf spring machine is a proven strategy for increasing output, reducing raw material waste, and entering high-tier OEM supply chains. Combined with a precision leaf spring taper rolling machine, modern spring shops achieve exceptional product durability and maximize operational profitability.
