In the rapidly evolving automotive and commercial vehicle industries, manufacturing high-reliability suspension systems requires advanced automation, uncompromising precision, and high thermal efficiency. Suspension components—especially those built for heavy-duty trucks, trailers, and off-road machinery—must withstand intense fatigue cycles and heavy load conditions.
Transitioning from traditional manual workshops to a modernized, fully integrated manufacturing facility requires state-of-the-art machinery. Adopting a heavy-duty leaf spring production line equipped with a specialized automatic leaf spring eye rolling machine gives suspension manufacturers a distinct competitive edge in product longevity, throughput speed, and operational profitability.
1. Main Advantages of an Automatic Leaf Spring Eye Rolling Machine
The eye-forming process is one of the most structurally critical stages in leaf spring fabrication. The eye loop bears continuous dynamic forces, torsional stress, and direct chassis connection loads. Traditional manual or semi-automatic eye forming often introduces internal material strain, inconsistent loop inner diameters, and wall thinning.
Deploying a high-precision automatic leaf spring eye rolling machine within your facility resolves these structural vulnerabilities. Key advantages include:
-
Dimensional Consistency: Utilizing dual-axis CNC hydraulic controls, the automatic leaf spring eye rolling machine forms perfect circular loops with exact inner tolerances, ensuring seamless bushing press-fits.
-
Stress Reduction: Programmed forming speeds prevent structural micro-cracks along the steel surface, preserving fatigue strength.
-
High Automation & Safety: Automated leaf loading and positioning reduce direct manual handling near hot steel, significantly lowering workplace injury risks while accelerating cycle times.
2. Core Components of a Complete Heavy-Duty Leaf Spring Production Line

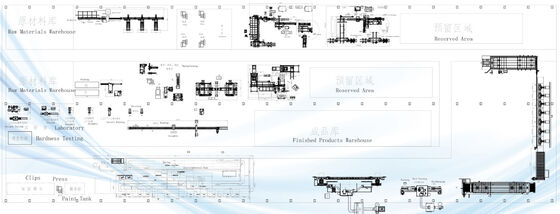

A high-performance heavy-duty leaf spring production line operates as a continuous, synchronized manufacturing system. Every unit must seamlessly integrate with the next to eliminate line bottlenecks and lower thermal energy loss.
Complete Line Workflow & Technical Functions
-
Shearing and Center-Hole Punching Unit: Raw flat spring steel bars (e.g., 60Si2Mn, 50CrV4, 51CrV4) are cut to length and cold/hot punched to create center-bolt holes.
-
Parabolic Taper Rolling Mill: For parabolic leaf designs, high-tonnage rollers taper the flat bar from the center to both tips, optimizing weight-to-strength ratios.
-
Heating Furnace & Eye Forming Section: The leaf tips are heated via medium-frequency induction, after which the automatic leaf spring eye rolling machine crafts the chassis attachment loops.
-
Cambering and Oil Quenching Machine: The main body is heated, bent to its specified camber curvature, and immersed in temperature-controlled quenching oil for martensitic microstructural transformation.
-
Tempering Furnace: Stress-relieves the steel to achieve optimal balance between hardness (HRC 38–48) and ductility.
-
Stress Shot Peening System: Imparts compressive surface stress to extend spring fatigue life by up to 300%.
-
Assembly, Scragging & Painting Line: Leaves are assembled, clamped, load-tested (scragged) to verify stiffness, and coated with corrosion-resistant anti-rust paint.
3. Innovations in Heating, Cambering, and Thermal Processing
Energy consumption accounts for a major portion of operational expenditure in suspension manufacturing. Modern heavy-duty leaf spring production line configurations focus heavily on thermal efficiency and automated material transport.
-
Medium-Frequency Induction Heating: Replaces traditional coal or gas furnaces with targeted induction coils that heat specific leaf sections in seconds, reducing oxidation scale formation and saving electrical energy.
-
Servo-Hydraulic Cambering Dies: Adjustable multi-point jack dies allow quick changeovers between different leaf curvature radiuses without full die replacement.
-
Agitated Quenching Tanks: Variable-speed oil circulation ensures uniform heat extraction across thick steel profiles, preventing distortion and internal thermal stress gradients.
4. Operational Comparison: Manual Lines vs. Automated Production Lines
Upgrading to an automated heavy-duty leaf spring production line alters key performance indicators (KPIs) across output, quality control, and labor allocation.
| Operational Metric |
Traditional Manual Line |
Modern Automated Production Line |
| Eye Forming Precision |
Manual jig forming; subject to operator variability |
Dedicated automatic leaf spring eye rolling machine; ±0.2 mm tolerance |
| Output Rate |
30–50 leaves per hour |
Up to 180+ leaves per hour |
| Labor Requirement |
12–18 operators per shift |
3–5 supervisory technicians |
| Heat Loss & Energy |
High transfer time between heating and bending |
Integrated, robotic pick-and-place transfer |
| Scrap Rate |
3% – 5% due to improper camber/eye dimensions |
Below 0.5% through real-time CNC feedback |
5. Maintenance, Calibration, and Quality Assurance Best Practices
Maintaining high productivity across a modern heavy-duty leaf spring production line requires structured preventative maintenance routines:
-
Daily: Check hydraulic oil levels, clean scale from eye rolling dies.
-
Weekly: Inspect induction coil insulation, calibrate camber die pressure.
-
Monthly: Test quenching oil viscosity and cooling efficiency.
-
Quarterly: Full alignment audit on automatic leaf spring eye rolling machine.
Essential Preventive Steps
-
Die Inspection for the Automatic Leaf Spring Eye Rolling Machine: Inspect forming mandrels and clamping rollers daily for wear or metal build-up. Keep spare mandrels on hand to maintain exact inner eye diameters.
-
Quenching Oil Quality Management: Periodically filter iron scale out of the quenching oil and monitor thermal conductivity to avoid soft spots on quenched leaves.
-
Load & Fatigue Testing: Perform regular scragging (pre-setting) and dynamic fatigue testing on batch samples to verify that material properties match OEM requirements.
6. Sourcing & Customization: Selecting the Right Equipment Partner
When investing in a heavy-duty leaf spring production line, partnering with an experienced machinery manufacturer is crucial for long-term ROI. Key factors to evaluate during supplier selection include:
-
Customization Capabilities: Ensure the manufacturer can tailor machine dimensions, hydraulic capacity (tonnage), and induction heating power to match your specific leaf spring profiles (from light pickup parabolic leaves to multi-leaf heavy truck assemblies).
-
Precision Equipment Engineering: Verify that core units, such as the automatic leaf spring eye rolling machine, utilize high-rigidity frames and proven hydraulic/electronic components for continuous 24/7 operation.
-
Turnkey Technical Support: Choose suppliers offering end-to-end service, including plant layout design, installation guidance, operator training, and reliable spare parts supply chains.
Conclusion
Upgrading your suspension manufacturing capabilities with an advanced heavy-duty leaf spring production line is a decisive step toward higher product quality, lower unit costs, and improved market competitiveness. By integrating dedicated equipment like an automatic leaf spring eye rolling machine, manufacturers can achieve precise structural tolerances, reduce scrap rates, and meet the rising demand for heavy-duty commercial automotive suspensions.
