Leaf Spring Assembly Line

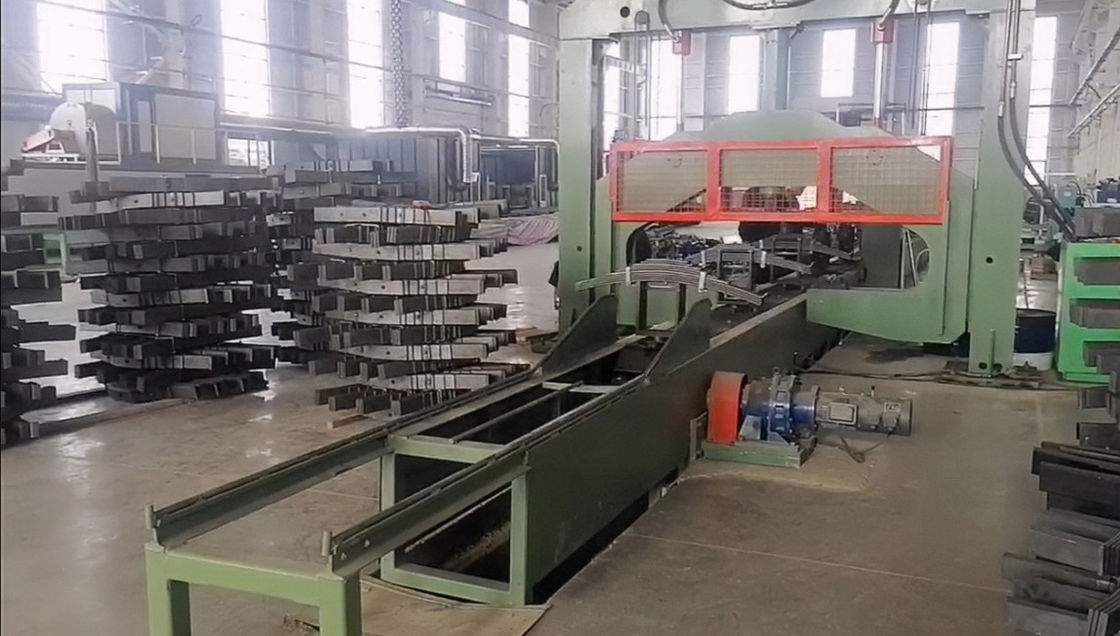

Large Image : Leaf Spring Assembly Line

Product Details:

Place of Origin:	CHINA
Brand Name:	Xiaocheng

Contact Now

Detailed Product Description

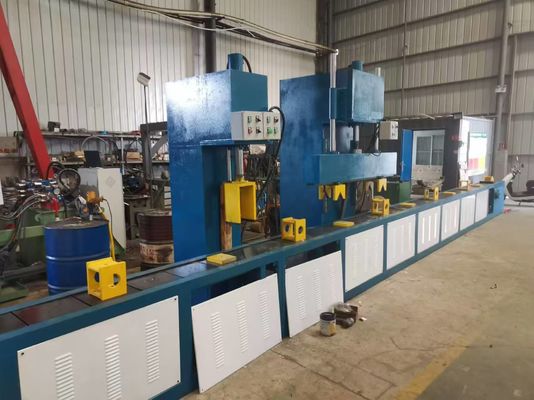

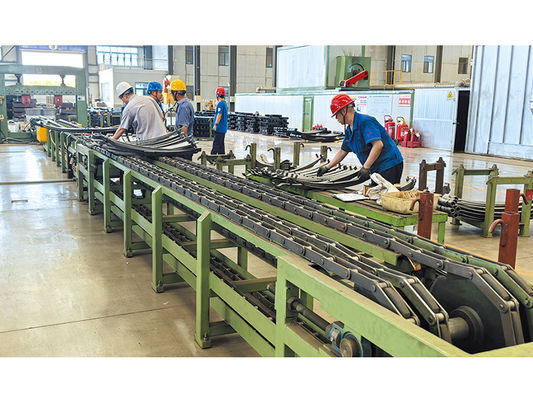

Leaf Spring Assembly Line:

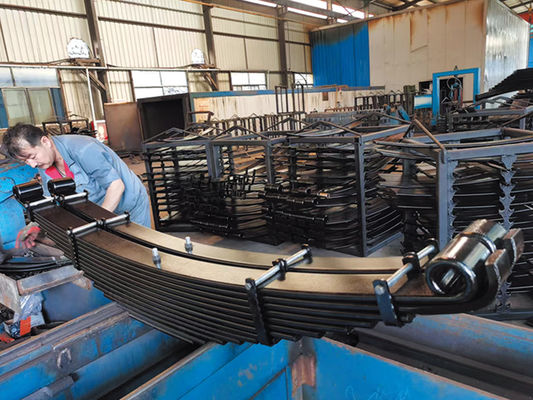

According to the client's requirements, design and manufacture the relevant mechanisms and control systems to work in conjunction with manual operations, completing the assembly tasks of stacking, clamping center bolts, pre-pressing, and sorting of leaf springs.

Assembly Thickness	50~220mm
Arc Height	25~240mm
Assembly Thickness+Arc Height	≤460mm
Assembly Width	89~120mm
Assembly Length	1200~2000mm
Unit Weight each Assembly	≤600Kg
Cart Space	1920mm
Assembly Cart Quantity	12
Cart Base Height	910mm
Assembly Machine Press Force 3rd Workstation	40KN 4MT Pneumatic
Press Stroke	450mm
Preloading Sorting Machine Max. Preloading Load 5th Workstation	300kN
Max. Preloading Stroke	600mm
